[普羅名特計量泵]隔膜計量泵CONCEPT C系列，電磁隔膜計量泵

作者：管理員  發布時間：2021年12月21日 聯系方式：021-64890289 瀏覽次數：5784
型號：CONCEPT C系列

[普羅名特計量泵]隔膜計量泵CONCEPT C系列，電磁隔膜計量泵







CONCEPT c系列電磁驅動計量泵

普羅名特CONCEPT c系列計量泵是由微處理器控制，短沖程、電磁驅動的隔膜計量泵。 CONCEPT c以其精巧的結構、可靠的性能、優良的性價比而為大多數OEM客戶所接受。由于泵頭材質具有良好的耐化學腐蝕性能，因而可以對各種工藝過程中幾乎所有化學液體進行準確計量。例如堿液、酸液、消毒劑、凝結劑和水處理用各種化學藥劑等。不但可手動控制、也可通過外部的脈沖或模擬信號控制。

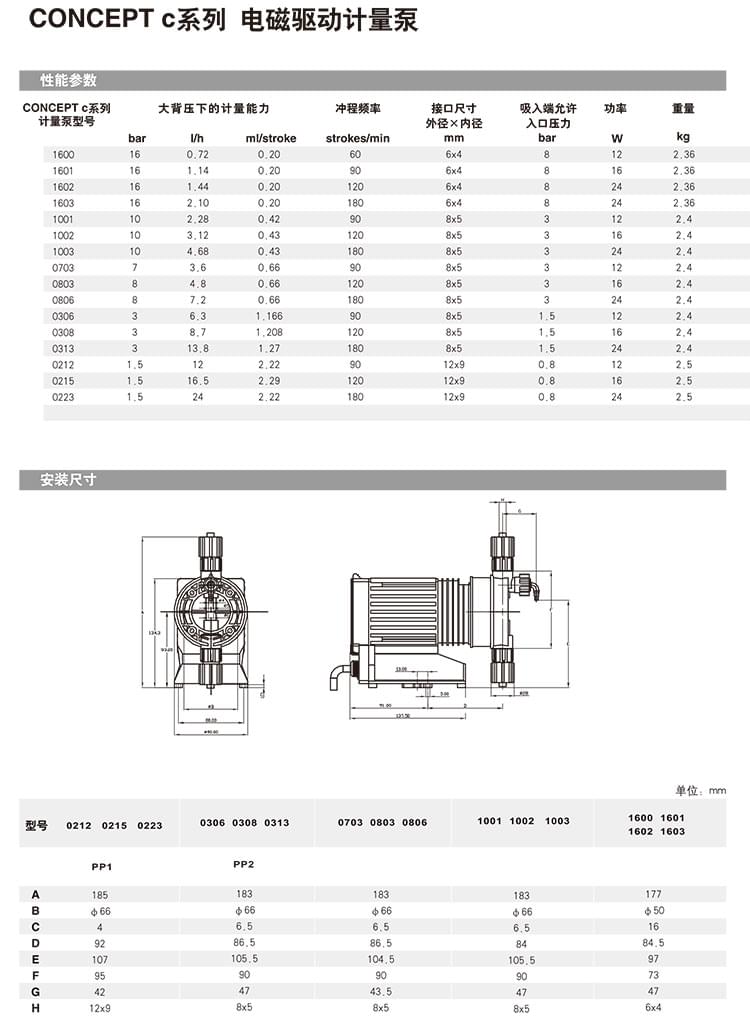

主要性能

流量范圍：0.72～24.0 l/h

壓力范圍：1.5～16 bar

驅動方式：電磁驅動

控制方式：沖程長度在0?100%范圍內連續調節(佳調節范圍在30?100%)。

沖程頻率控制形式多樣：

1.手動調節的三種固定頻率：100%、50%、25%

2.兩種可切換頻率：100%、50% +外部脈沖信號控制

3.兩種可切換頻率：100%、50% +外部模擬4～20 mA電流信號控制

計量精度：重復計量精度優于±2%



工作條件

◇ 環境溫度：—10°C～+45°C

◇ 介質溫度：—10°C～+50°C

◇ 介質粘度：<200 mPa ? s

◇ 電 源：220/100V～230V，50/60Hz

◇ 功 率：12W/16W/24W

◇ 保護等級：IP65

◇ 絕緣等級：F



過流部件材質


泵頭

吸排口閥體

密封件

閥球

PP1

聚丙烯

聚丙烯

乙丙橡膠

陶瓷

PP2

聚丙烯

聚丙烯

氟化橡膠

陶瓷

注：PP1的前兩位"PP"代表泵頭材質，后一位"1 "代表密封件材質。


應用范圍

可對水處理、石化、衛生、飲料等行業中幾乎所有常見的化學液體進行計量，例如堿液、酸液、含氯的溶液、消毒劑、凝結劑、冷卻塔用化學藥劑等。

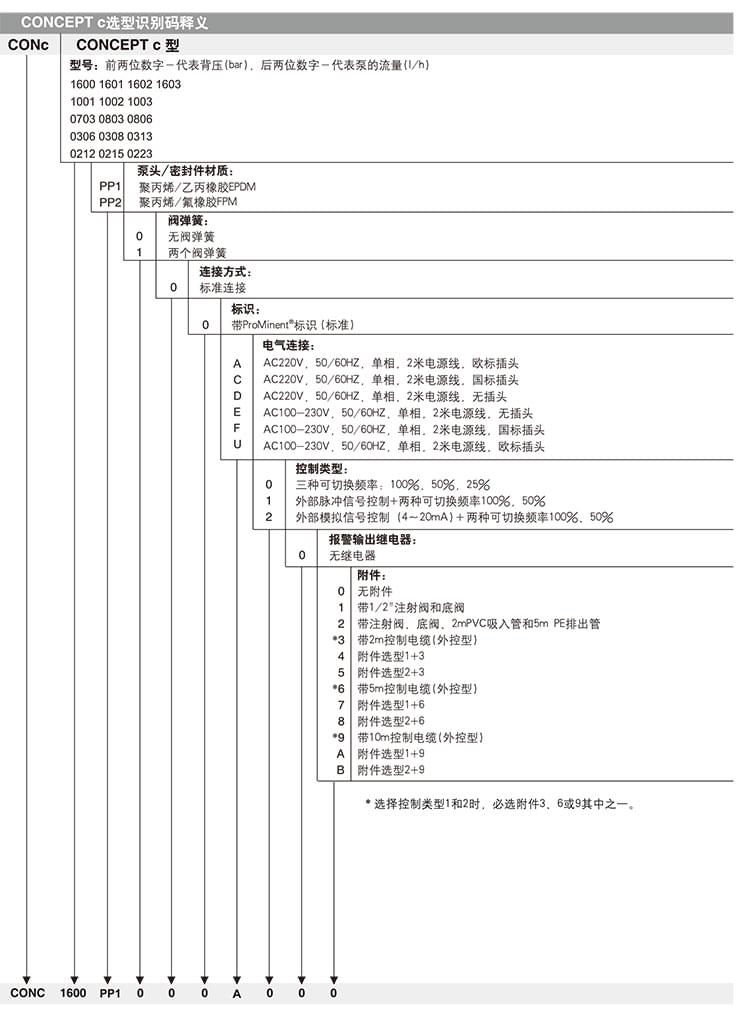

普羅名特計量泵CONCEPT C系列全系列完整型號：

CONC1600PP1000A002   CONC1600PP1000A105  CONC1600PP1000A205  CONC1600PP1000A103  CONC1600PP1000A203

CONC1600PP2000A002   CONC1600PP2000A105  CONC1600PP2000A205  CONC1600PP2000A103  CONC1600PP2000A203

CONC1601PP1000A002   CONC1601PP1000A105  CONC1601PP1000A205  CONC1601PP1000A103  CONC1601PP1000A203

CONC1601PP2000A002   CONC1601PP2000A105  CONC1601PP2000A205  CONC1601PP2000A103  CONC1601PP2000A203

CONC1602PP1000A002   CONC1602PP1000A105  CONC1602PP1000A205  CONC1602PP1000A103  CONC1602PP1000A203

CONC1602PP2000A002   CONC1602PP2000A105  CONC1602PP2000A205  CONC1602PP2000A103  CONC1602PP2000A203

CONC1603PP1000A002   CONC1603PP1000A105  CONC1603PP1000A205  CONC1603PP1000A103  CONC1603PP1000A203

CONC1603PP2000A002   CONC1603PP2000A105  CONC1603PP2000A205  CONC1603PP2000A103  CONC1603PP2000A203

CONC1001PP1000A002   CONC1001PP1000A105  CONC1001PP1000A205  CONC1001PP1000A103  CONC1001PP1000A203

CONC1001PP2000A002   CONC1001PP2000A105  CONC1001PP2000A205  CONC1001PP2000A103  CONC1001PP2000A203

CONC1002PP1000A002   CONC1002PP1000A105  CONC1002PP1000A205  CONC1002PP1000A103  CONC1002PP1000A203

CONC1002PP2000A002   CONC1002PP2000A105  CONC1002PP2000A205  CONC1002PP2000A103  CONC1002PP2000A203

CONC1003PP1000A002   CONC1003PP1000A105  CONC1003PP1000A205  CONC1003PP1000A103  CONC1003PP1000A203

CONC1003PP2000A002   CONC1003PP2000A105  CONC1003PP2000A205  CONC1003PP2000A103  CONC1003PP2000A203

CONC0703PP1000A002   CONC0703PP1000A105  CONC0703PP1000A205  CONC0703PP1000A103  CONC0703PP1000A203

CONC0703PP2000A002   CONC0703PP2000A105  CONC0703PP2000A205  CONC0703PP2000A103  CONC0703PP2000A203

CONC0803PP1000A002   CONC0803PP1000A105  CONC0803PP1000A205  CONC0803PP1000A103  CONC0803PP1000A203

CONC0803PP2000A002   CONC0803PP2000A105  CONC0803PP2000A205  CONC0803PP2000A103  CONC0803PP2000A203

CONC0806PP1000A002   CONC0806PP1000A105  CONC0806PP1000A205  CONC0806PP1000A103  CONC0806PP1000A203

CONC0806PP2000A002   CONC0806PP2000A105  CONC0806PP2000A205  CONC0806PP2000A103  CONC0806PP2000A203

CONC0306PP1000A002   CONC0306PP1000A105  CONC0306PP1000A205  CONC0306PP1000A103  CONC0306PP1000A203

CONC0306PP2000A002   CONC0306PP2000A105  CONC0306PP2000A205  CONC0306PP2000A103  CONC0306PP2000A203

CONC0308PP1000A002   CONC0308PP1000A105  CONC0308PP1000A205  CONC0308PP1000A103  CONC0308PP1000A203

CONC0308PP2000A002   CONC0308PP2000A105  CONC0308PP2000A205  CONC0308PP2000A103  CONC0308PP2000A203

CONC0313PP1000A002   CONC0313PP1000A105  CONC0313PP1000A205  CONC0313PP1000A103  CONC0313PP1000A203

CONC0313PP2000A002   CONC0313PP2000A105  CONC0313PP2000A205  CONC0313PP2000A103  CONC0313PP2000A203

CONC0212PP1000A002   CONC0212PP1000A105  CONC0212PP1000A205  CONC0212PP1000A103  CONC0212PP1000A203

CONC0212PP2000A002   CONC0212PP2000A105  CONC0212PP2000A205  CONC0212PP2000A103  CONC0212PP2000A203

CONC0215PP1000A002   CONC0215PP1000A105  CONC0215PP1000A205  CONC0215PP1000A103  CONC0215PP1000A203

CONC0215PP2000A002   CONC0215PP2000A105  CONC0215PP2000A205  CONC0215PP2000A103  CONC0215PP2000A203

CONC0223PP1000A002   CONC0223PP1000A105  CONC0223PP1000A205  CONC0223PP1000A103  CONC0223PP1000A203

CONC0223PP2000A002   CONC0223PP2000A105  CONC0223PP2000A205  CONC0223PP2000A103  CONC0223PP2000A203
